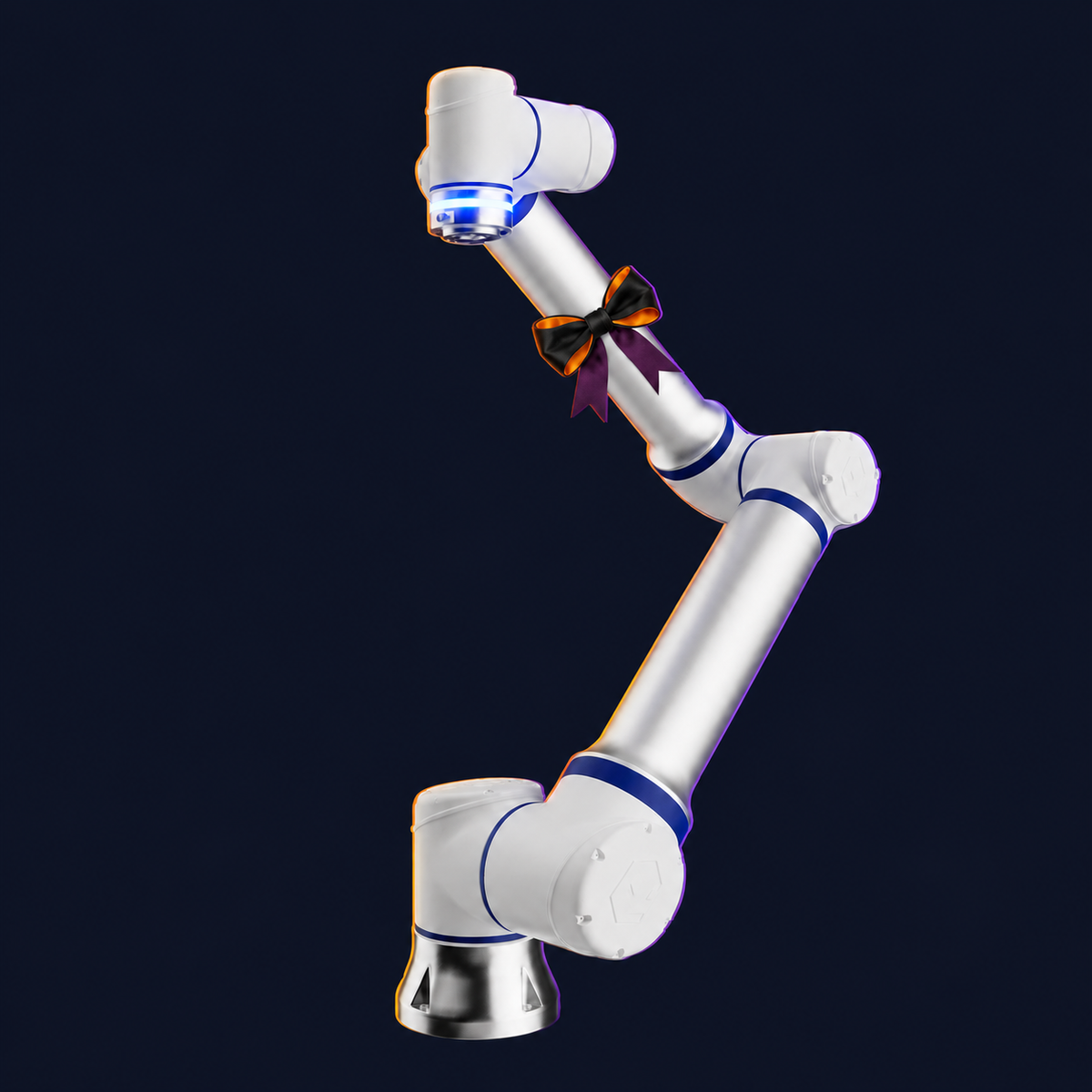

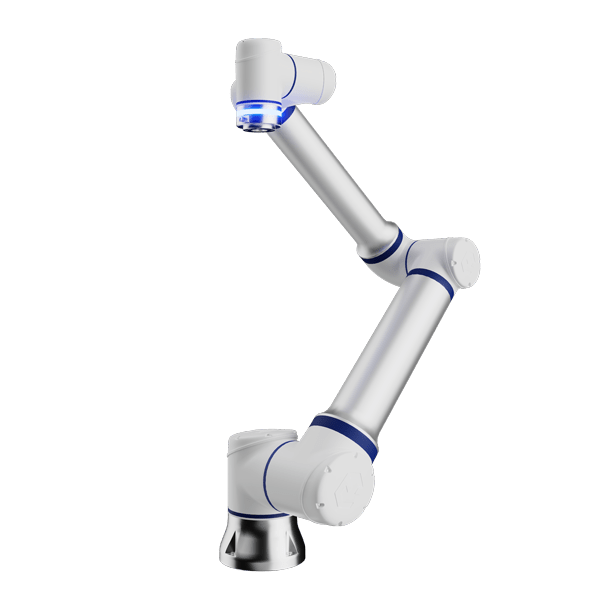

The CS612 Cobot by Elite Robots, from Useabot, is a silver and white collaborative robot arm with three joints, blue accents, and a 12kg payload. Its compact, modern design is shown upright with segments bent at various angles on a plain white background.
Three Useabot CS612 Cobots by Elite Robots, with white, metallic gray, and blue cylindrical designs and multiple joints, are shown in different positions. Each collaborative robot can handle up to a 12kg payload.
  • Load image into Gallery viewer, The CS612 Cobot by Elite Robots, from Useabot, is a silver and white collaborative robot arm with three joints, blue accents, and a 12kg payload. Its compact, modern design is shown upright with segments bent at various angles on a plain white background.
  • Load image into Gallery viewer, Three Useabot CS612 Cobots by Elite Robots, with white, metallic gray, and blue cylindrical designs and multiple joints, are shown in different positions. Each collaborative robot can handle up to a 12kg payload.

CS612 Cobot by Elite Robots

$31,400.00
$31,400.00 $23,550.00
sold out
Shipping calculated at checkout.

CS612 Collaborative Robot

Extended-reach cobot with a 12 kg payload

The Elite Robots CS612 combines a 12 kg payload with a 1,304 mm reach for automation that needs both carrying capacity and workspace coverage. It is designed for machine tending, material handling, palletizing, assembly, mobile-robot integration, and other applications that require adaptable six-axis motion.

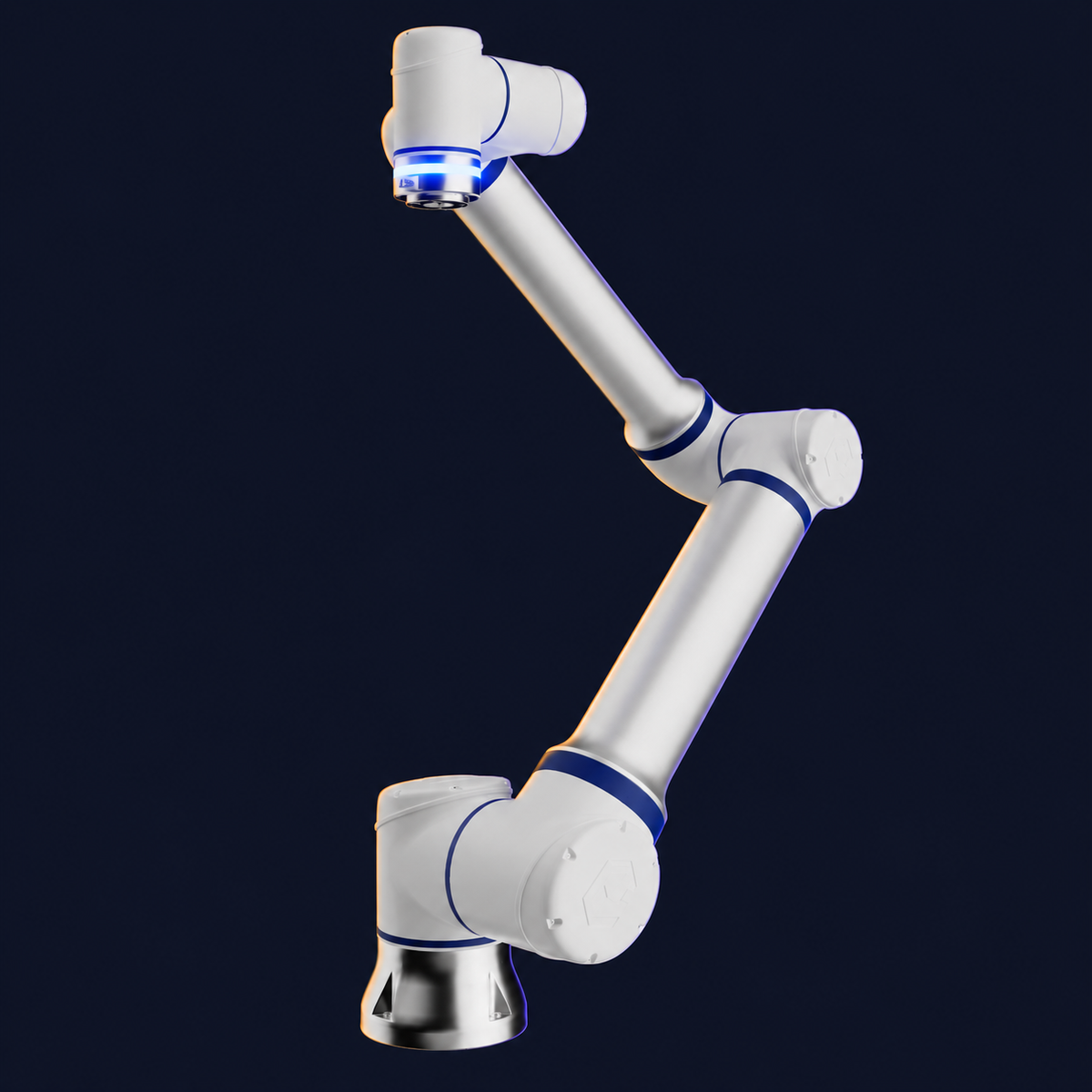

Elite Robots CS612 collaborative robot

Performance Highlights

Payload 26.5 lb (12 kg)
Reach 51.3 in. (1,304 mm)
Repeatability ±0.0020 in. (±0.05 mm)
Typical TCP speed 11.2 ft/s (3.4 m/s)
Axes 6
Base footprint 7.5 in. diameter (190 mm)
Robot weight 75.0 lb (34 kg)
Typical power use 435 W
Arm protection IP65 standard; optional IP68 configuration
Arm operating range 14°F to 122°F (-10°C to 50°C)
Relative humidity Below 90%, non-condensing

Recommended Applications

  • Machine vision
  • Assembly and screwdriving
  • CNC and other machine tending
  • Palletizing, stacking, and kitting
  • Material handling and pick-and-place
  • AGV or AMR integration
  • Dispensing and welding

Motion and Joint Performance

  • Joints 1-2: ±360° at up to 120°/s
  • Joint 3: ±360° at up to 150°/s
  • Joints 4-6: ±360° at up to 180°/s

Published TCP and joint speeds describe the robot's capability. Safe operating speed and motion limits depend on the complete application, payload, end-of-arm tooling, workspace, and required risk assessment.

Tool I/O and End-of-Arm Integration

M8, 8-pin tool connector; 4 configurable digital inputs and 4 configurable digital outputs; 1 analog input and 1 analog output; 0 V, 12 V, or 24 V tool power; RS485 and Modbus RTU.

Final end-of-arm-tool selection should be verified for payload, center of gravity, electrical demand, communications, reach, and the complete duty cycle.

Controller and Communications

  • Standard AC controller: 24 digital inputs and 24 digital outputs, including 8 safety-configurable DI/DO; 2 analog inputs and 2 analog outputs; and 4 high-speed digital inputs.
  • Supported controller communications: RS485, Ethernet TCP/IP, Modbus TCP/RTU, EtherNet/IP slave, and PROFINET slave.
  • Controller power: 100-240 VAC, 50-60 Hz.
  • Standard-controller enclosure: approximately 19.9 x 10.1 x 18.2 in. (505 x 257 x 462 mm), IP44.

Teach Pendant and Programming

The standard ERP400 teach pendant is listed with a 12.1-inch, 1280 x 800 full-touch display, IP54 protection, and an approximately 18.0 ft (5.5 m) cable. Elite Robots also offers an ERP400S option with a three-position enabling device plus physical jogging and function keys. Confirm the controller, pendant, software, and cable configuration in the final Useabot quotation.

Safety and Environmental Protection

The CS Series arm is listed with standard IP65 protection and an optional IP68 configuration. Elite Robots identifies ISO 13849 safety certification and adjustable collision-detection settings at the CS Series level. Collaborative operation is application-dependent and does not remove the need for a documented risk assessment, correct end-of-arm tooling, safe programming, and any safeguarding required by the completed system.

Why Consider the CS612

  • Balanced reach and payload for multi-process automation
  • Useful for larger work envelopes and mobile platforms
  • 435 W typical power use
  • Industrial protection with optional enhanced ingress protection

Useabot Configuration, Deployment and Support

Useabot provides U.S.-based application review, configuration guidance, deployment planning, systems-integration coordination, training, and ongoing support. We can help evaluate reach, payload, tooling, controller interfaces, safety requirements, cell layout, and commissioning needs before a final quotation is issued.

Plan your robot deployment or contact Useabot to discuss the application. Pricing shown on this page applies to the listed product and selected options; accessories, end-of-arm tooling, engineered fixtures, safety equipment, integration, freight, installation, and training are quoted according to project scope unless explicitly included.

Technical specifications are based on current manufacturer information and may vary by configuration. Confirm final requirements and included equipment in the Useabot quotation. Manufacturer information: Elite Robots.
