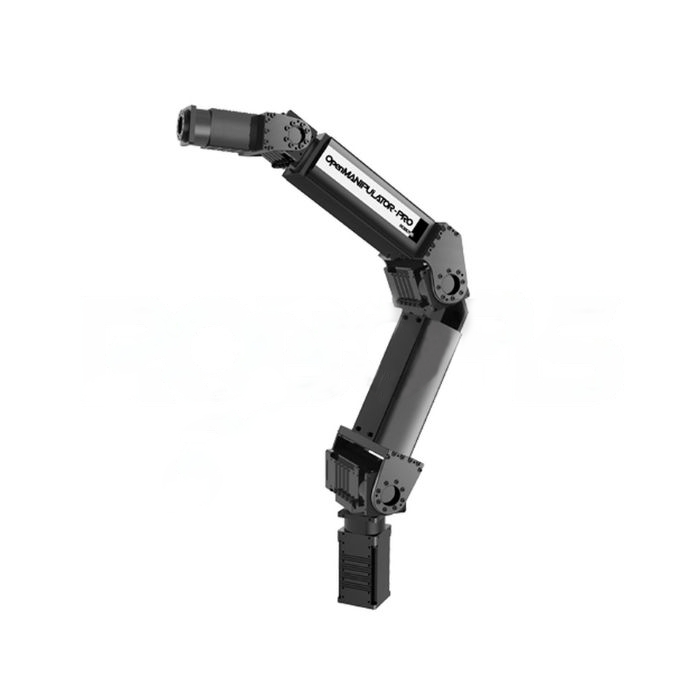

Product Overview
Availability: ** This product has a 4 week lead time - upon order completion & confirmation of payment**
- User Programmable Open-Source Manipulator System
- Modular Platform for Easy Maintenance and Customization
- No External Control Box & High Weight-to-Payload Ratio
S/W Specification
- ROBOTIS Manipulator controller package based on integrated software
- OpenMANIPULATOR-P Library (Kinematics, Trajectory and Dynamixel Controller).
- GUI program package for setting and monitoring control parameters.
- MoveIt! package for OpenMANIPULATOR-P
- Simulation package based on Gazebo Simulator
- Teleoperation examples of keyboard and Joystick
Purpose
- Research and Education
- Kinematics and Dynamics Experiment
- Research and Design a Dual Arm Robot
- Build a Mobile Robot System
Industrial Operation
- Inspection Equipment
- Small-Scale Delivery System
Caution
- Power supply and PC are not included.
- Please purchase separately according to your usage environment.
Factory Default Settings
ID | 1 |
---|---|
Baud Rate | 57600 bps |
(User can change various settings including ID and baud rate according to environment)
- If you purchase RH-P12 (Robot Hand) and RM-P60-RNH(OpenMANIPULATOR-P) together, they will be shipped out together in the OpenMANIPULATOR-P`s case.
- Features of DYNAMIXEL-P
- All-in-one Modular Design
- DC Motor + Controller + Driver + Sensor + Cycloid Reduction Gear
Key Product Information
- Compact and Lightweight
- Minimized module size with compact and lightweight cycloid reduction gear.
- High weight-to-output ratio(0.05Nm/g)
- High impact resistance ( over 400%)
- High Precision and Low Backlash
- Contactless (Magnetic) Absolute Encoder(by AMS) & Incremental Encoder for Precise Positioning
- Low backlash (3~4arcmin)
- Performance data provided tested by Korea Laboratory Accreditation Scheme(KOLAS)
- Current-Based Torque Control
- High-speed current sensing algorithm and current feedback control
- Triple-loop control for current, speed, and position feedback
- Use-Friendly Development Environment
- Provide C language-based library
- Various solution examples (C++, LabVIEW, C#, eclipse, JAVA, etc..)
Package Components
- OpenMANIPULATOR-P: 1 (Fully-assembled)
- Hard Case: 1
- U2D2: 1
- Spare Cables (4P, 2P): 1
- Screw Sets (WB M3x8 etc): 1
- 4P Expansion Hub: 1
H/W Specification
- DOF 6
- Payload (kg) 3
- Repeatability (mm) ±0.05
- Speed (Each joint, deg/sec) 180
- Weight (kg) 5.5
- Reach (mm) 645
- Rated Voltage (VDC) 24
- Communication RS-485 (Multi-Drop Bus)
- Motor Output / Joint
- 200W / 2ea
- 100W / 2ea
- 20W / 2ea
- Software ROS (Ubuntu Linux)
- Controller
PC (Not Included)
Links
- e-Manual: http://emanual.robotis.com/docs/en/platform/openmanipulator_pro/overview/
- Drawing
- DYNAMIXEL SDK
