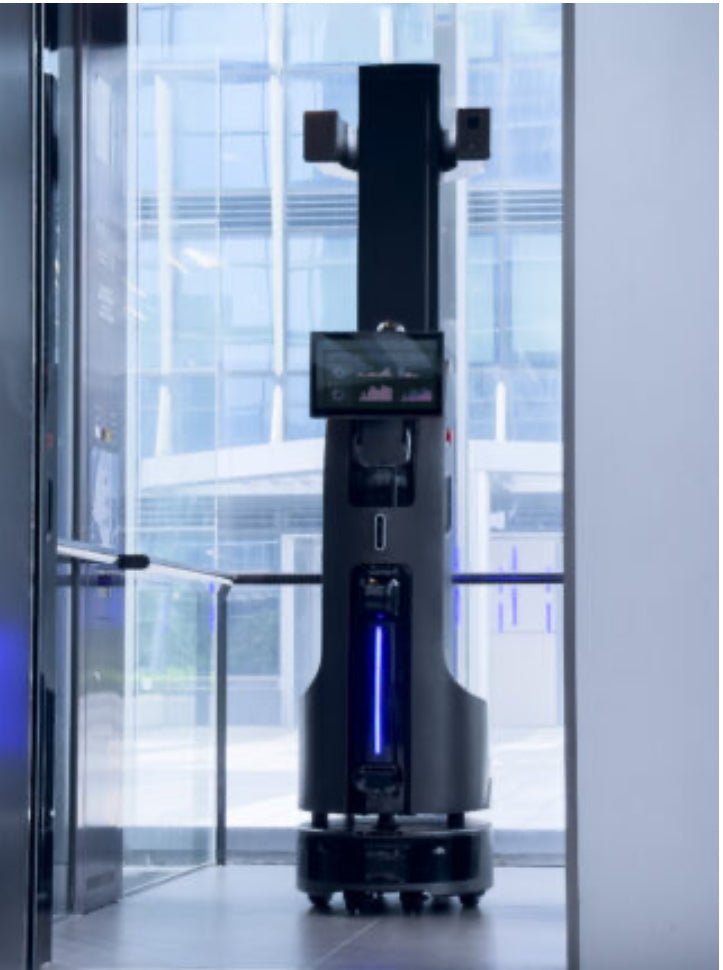

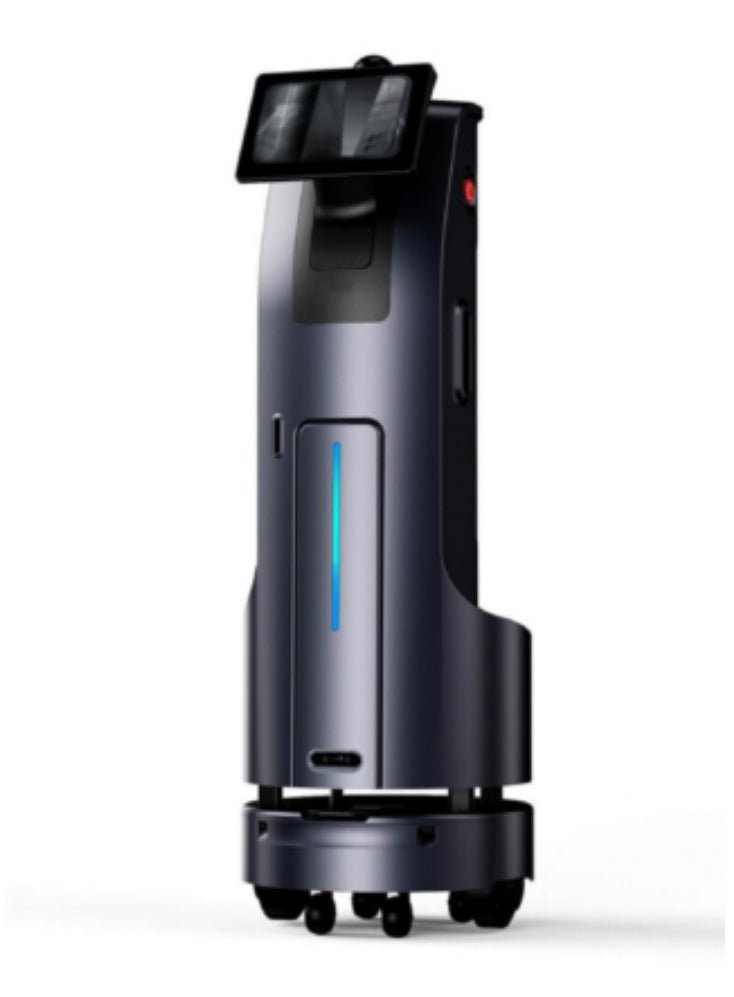

Robocore Blackjack – Security & Inspection Robot
The Robocore Blackjack is a cutting-edge security and inspection robot built on the Temi platform. Designed for autonomous patrolling and real-time monitoring, it is equipped with:
• Adjustable-height sensors for versatile surveillance
• Vibration accelerometer for detecting unusual movements
• Built-in 4K/360° dual-camera system for comprehensive video coverage
This highly adaptable robot can operate in a variety of security and inspection scenarios, including:
• Elevator inspections
• Property management
• Security patrols
Specifications
Size & Weight
• Diameter: 22.4 in.
• Height: 58.74 in.
• Height (with elevator extension): 87.2 in.
• Net Weight: 213 lbs
Operating Environment
• Operating Temperature: 32°F – 131°F
• Operating Humidity: 30 – 70%
Mapping & Navigation
• Max Map Size: 215,278 sq. ft.
• Number of Locations: 1,000
Floor Navigation
• Max Barrier Height: 0.31 in.
• Max Slope Angle: 8°
• Max Gap Width: 1.57 in.
Movement
• Linear Speed: 3.2 ft/sec
• Spin Radius: 0 in.
• Positioning Accuracy: 2 in.
Sensors (Temi Platform)
• Detectable Obstacle Height: 4.7 – 59 in.
• Ground Obstacle Detection Range: 1.9 – 47 in.
• Minimum Detectable Ground Obstacle Height: 0.78 in.
• Minimum Cliff Height Detection: 0.78 in.
• LiDAR Range: 114.8 ft.
Surveillance & Sensory Detection
• 4K/360° dual-camera system for wide-angle video monitoring
• Vibration accelerometer for movement detection
• Real-time video surveillance capabilities
Battery & Power
• Operation Time:
• Normal Usage: 8 hrs
• Heavy Usage: 3.5 hrs
• Standby Mode: 18 hrs
• Charging Time (0 – 100%)
• Power OFF: 4 hrs
• Power ON: 5 hrs
• Output Voltage:
• Upper Component: 3.3V / 5V / 12V
• Temi Platform (Output to Upper Component): 19.6 – 28.7V
• Capacity:
• Upper Component: 2000W
• Temi Platform: 500W
• Charging Voltage:
• Upper Component: 29.4V
• Temi Platform: 29.4V
Charging Dock
• Dimensions (L x W x H): 7.9 x 12 x 10.8 in.
• Weight: 7.8 lbs
• Input Voltage & Current: 100 – 240V, 15A
• Output Voltage & Current: 29.4V, 20A
Support & Connectivity
• Wi-Fi & 4G Connectivity
• Web Interface for Remote Monitoring & Control
(Note: All specifications are subject to change.)
