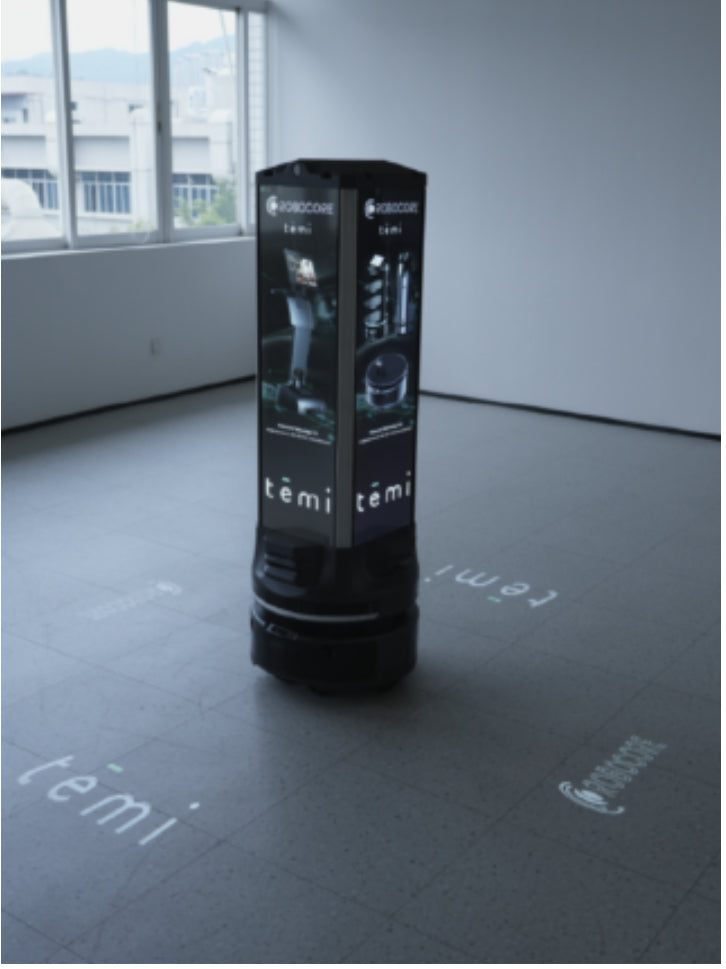

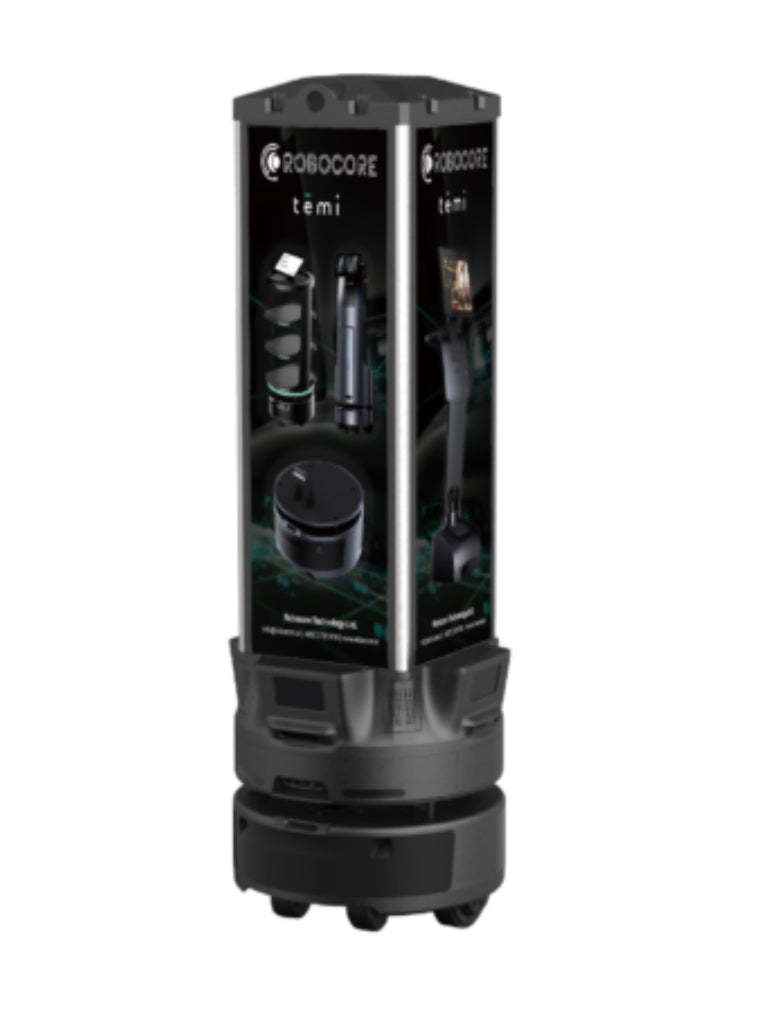

Robocore Fourcast by temi
Mobile Advertising Robot – Built on the Temi Platform
Please note: lead time for the Robocore Fourcast once ordered is approximately two months after purchase.
Experience the future of advertising with our cutting-edge Mobile Advertising Robot, designed for high-performance autonomous navigation. Built on the Temi platform, this intelligent advertising robot seamlessly integrates multiple functional modules, including:
- Four-sided 38.8-inch screens
- Projectors for dynamic visuals
- Depth cameras & LiDAR for precise mapping
- Cliff sensors & obstacle detection cameras for enhanced safety
These advanced features allow businesses to deliver innovative, eye-catching, and interactive advertising experiences like never before.
Specifications
Weight
- Net Weight: 150 lbs
Size
- Diameter: 19.7 in.
- Height: 58.3 in.
Mapping & Navigation
- Max Map Size: 215,278 sq. ft.
- Number of Locations: 1,000
Floor Navigation
- Max Barrier Height: 0.47 in.
- Max Slope Angle: 5°
- Max Gap Width: 1.57 in.
Movement
- Linear Speed: 3.2 ft/sec
- Spin Radius: 0 in.
Sensors
- Detectable Obstacle Height: 4.7 – 59 in.
- Ground Obstacle Detection Range: 1.9 – 47 in.
- Minimum Detectable Ground Obstacle Height: 0.78 in.
- Minimum Cliff Height Detection: 0.78 in.
- LiDAR Range: 114.8 ft.
Display Screen
- Size: 37 x 10.6 in.
- Resolution: 1920 x 561
- Color Display: 16.7 million colors
- Voltage: 12V
Camera
- Frame Rate: 30 fps
- Resolution:
- Depth: 640 x 480
- RGB: 1280 x 800
- Distance Range: 12 – 137.8 in. (subject to lighting conditions)
Projection
- Projection Area: 17.3 – 20.5 x 16.5 in.
- Projection Distance: 17.7 – 35.4 in.
- Resolution: 854 x 480
- Brightness: 65 lumens
- Voltage: 5V
Battery & Power
- Operation Time:
- Normal Usage: 6 hrs
- Heavy Usage: 4 hrs
- Charging Time (0 – 100%)
- Power OFF: 4 hrs
- Power ON: 6 hrs
- Output Voltage:
- Upper Component: 29V
- Temi Platform (Output to Upper Component): 19.6 – 28.7V
- Capacity:
- Upper Component: 40Ah
- Temi Platform: 500W
- Charging Voltage:
- Upper Component: 25.2V
- Temi Platform: 29.4V
Charging Dock
- Dimensions (L x W x H): 7.9 x 12 x 10.8 in.
- Weight: 7.8 lbs
- Input Voltage & Current: 100 – 240V, 15A
- Output Voltage & Current: 29.4V, 20A
External Battery
- Dimensions (L x W x H): 19.7 x 19.7 x 2.6 in.
- Weight: 19 lbs
Support & Connectivity
- Wi-Fi & 4G Connectivity
- Web Interface: Robot Intelligent Advertising Management Platform
(Note: All specifications are subject to change.)
